Yamaha #CBR12 - 12" Passive Speaker
Preorder date is approximate.

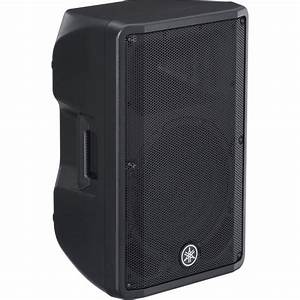

Yamaha CBR12 12in Passive Speaker
The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications
The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.
Specifications:
- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range (-10dB) : 48 Hz - 20 kHz
- Components LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
- Components HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover: 2.1 kHz
- Power rating: NOISE 175W
- Power rating PGM: 350W
- Power rating PEAK: 700W
- Nominal impedance: 8O
- SPL Sensitivity (1W; 1m on axis) : 96dB SPL
- SPL Peak (Calculated) : 125 dB SPL
- I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
- Finish: Black
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole socket: F35 mm Bottom x 1
- Dimensions: (W x H x D) 376 x 601 x 348 (14.8 x 23.7 x 13.7â)
- Net weight: 13.9 kg (30.6 lbs)
