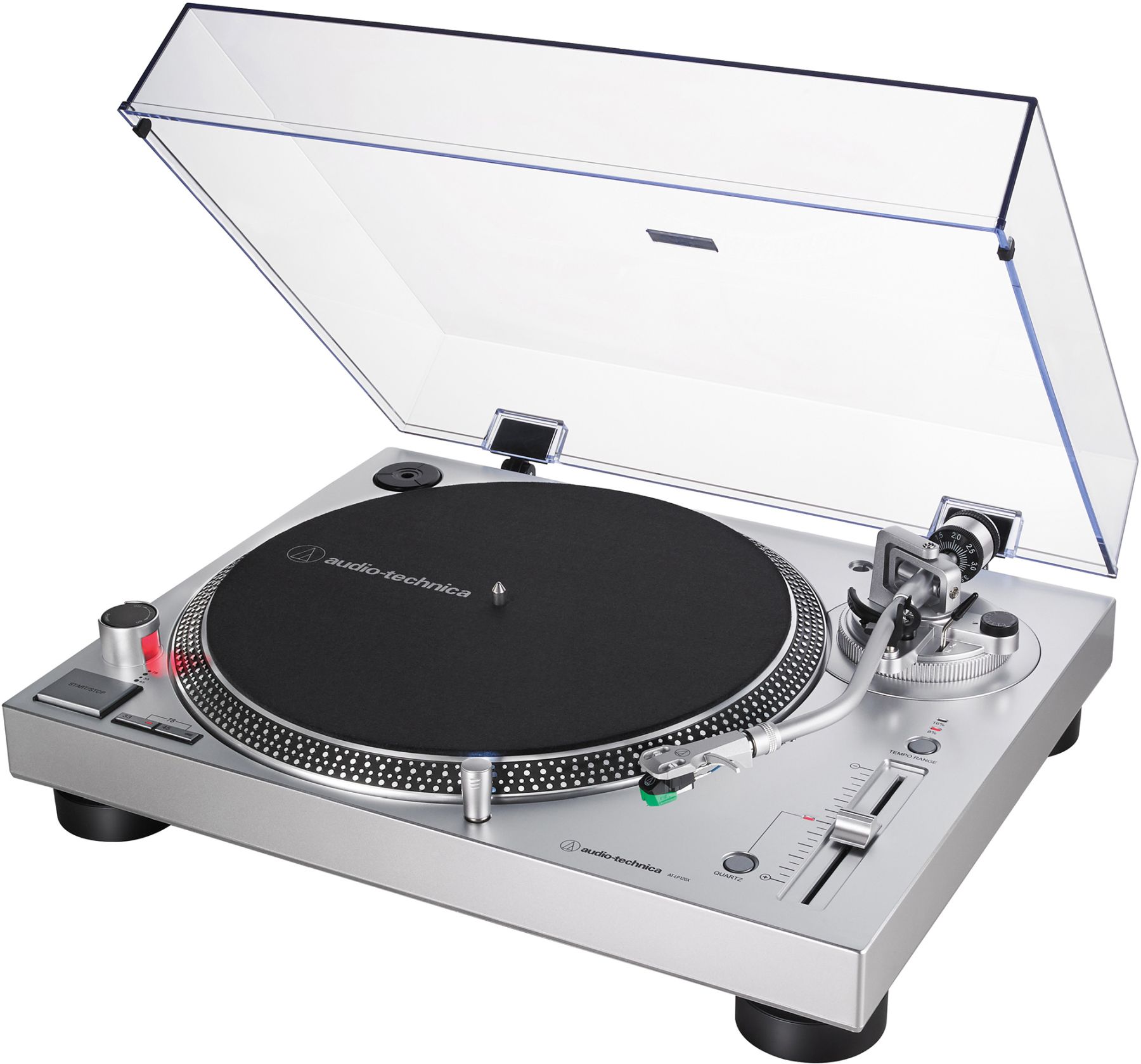

Audio-Technica #AT-LP120XUSB-SV Direct-Drive Turntable (Analog & USB)-Silver

AUDIO-TECHNICA ATLP120XUSBSV DETAILS

Preserve your favorite 33 1/3 and 45 rpm vinyl records as digital files with your computer and the silver Audio-Technica AT-LP120XUSB Stereo Turntable.

This update of the Audio Technica AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Features:

  • Experience the high-fidelity audio of vinyl
  • Direct-drive, DC servo motor
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Selectable 33/45/78 RPM speeds
  • Professional-grade anti-resonance, die-cast aluminum platter with felt mat
  • AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnetâ„¢ phono cartridge with 0.3 x 0.7 mil elliptical stylus
  • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
  • Built-in switchable phono pre-amplifier for phono- or line-level output
  • Stroboscopic platter with speed indicator
  • Variable pitch control with quartz speed lock
  • Removable plug-type target light for easier cueing in low light
  • Damped base construction for reduced low-frequency feedback coloration
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
  • Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover

Specs:

  • Type: 3-speed, fully manual operation
  • Motor: DC servo motor
  • Drive Method: Direct drive
  • Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
  • Turntable Platter: Die-cast aluminum
  • Starting Torque:>1.0 kgf.cm
  • Braking System: Electronic brake
  • Wow and Flutter:<0.2% (WTD) @ 3 kHz (JIS)
  • Signal-to-Noise Ratio: >50 dB
  • Output Level Pre-amp "PHONO": 4 mV nominal at 1 kHz, 5 cm/sec
  • Pre-amp "LINE": 240 mV nominal at 1 kHz, 5 cm/sec
  • Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
  • USB Function: A/D, D/A - 16-bit/44.1 kHz or 48 kHz USB selectable;
  • Computer interface - USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
  • Power Supply Requirements: 120V AC, 60 Hz
  • Power Consumption: 2.75 W
  • Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
  • Weight: 8 kg (17.6 lbs.), without dust cover
  • Accessories Included: AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
  • Tonearm type: Balanced S-shaped tonearm with detachable headshell
  • Effective arm length: 230.5 mm
  • Overhang: 16 mm
  • Tracking error angle: Less than 3 degrees
  • Applicable cartridge weight: 3.5-8.5 g
  • Anti-skating range: 0-4 g
  • Replacement Stylus: AT-VMN95E

USB operation system requirements

  • PC or Mac with an available USB port (USB1.1 or higher)
  • Windows 7 or above, or Mac OS X or above

A removable dust cover, USB cable, RCA audio cable, and 45 rpm adapter are included.
