AUDIO-TECHNICA ATLPW30TK DETAILS

Adjustable dynamic anti-skate control and VM95 Series Stylus.

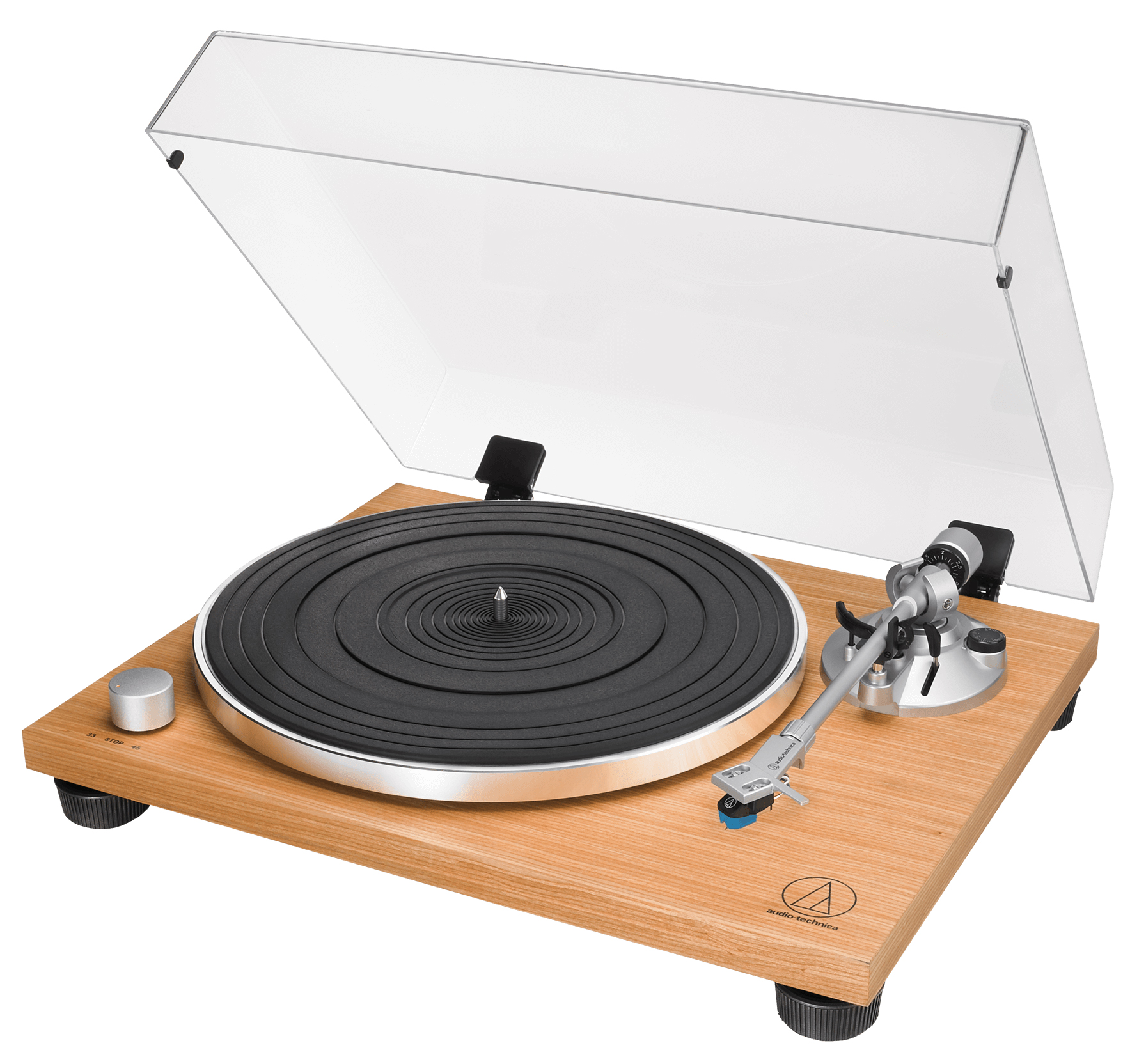

The Audio Technica AT-LPW30TK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated teak veneer to limit low-frequency acoustical feedback.
The turntable includes a straight aluminum tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW30TK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Optimal High-Fidelity Audio Reproduction: Stylish Wood Turntable
A stunning addition to any system, the AT-LPW30TK features an anti-resonance plinth with simulated teak wood veneer to limit low-frequency acoustic feedback.

Sophisticated Styling: Audio Aesthetics
The LPW30TK was designed to give you optimal high-fidelity audio reproduction from vinyl, with sophisticated styling.

Cartridge Assembly Line Circa 1962: Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century's worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminum platter with rubber mat
• AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
• AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fiberboard) plinth with teak simulated wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Specifications:

• Type: Belt-drive manual turntable
• Motor: DC servo
• Drive Method: Belt drive
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable Platter: Die-cast aluminum
• Wow and Flutter: < 0.15% WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio: >60dB
• Output Level: Pre-amp "PHONO": 4 mV nominal at 1 kHz, 5 cm/sec. Pre-amp "LINE": 200 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
• Power Supply Requirements: 100-240V AC, 50/60 Hz, 0.5 A Max.
• Dimensions: 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
• Weight: 3.90 kg (8.60 lbs.) without dust cover
• Accessories Included: Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95C stereo cartridge, 45-RPM adapter, RCA audio cable (approx.. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges
• Tonearm type: Static balanced straight aluminum pipe tonearm
• Effective arm length: 223.6 mm
• Overhang: 18.6 mm
• Tracking error angle:
• Applicable cartridge weight: 12-17 g
• Stylus pressure adjustment range: 0-3 g
• AC adapter: 12 V, 0.5 A
• Replacement Stylus: AT-VMN95C

Detachable dual RCA output cable and constructed from Anti-resonance MDF.
