AUDIO-TECHNICA ATLPW40WN DETAILS

Speed-sensor system for accurate platter rotation speed.

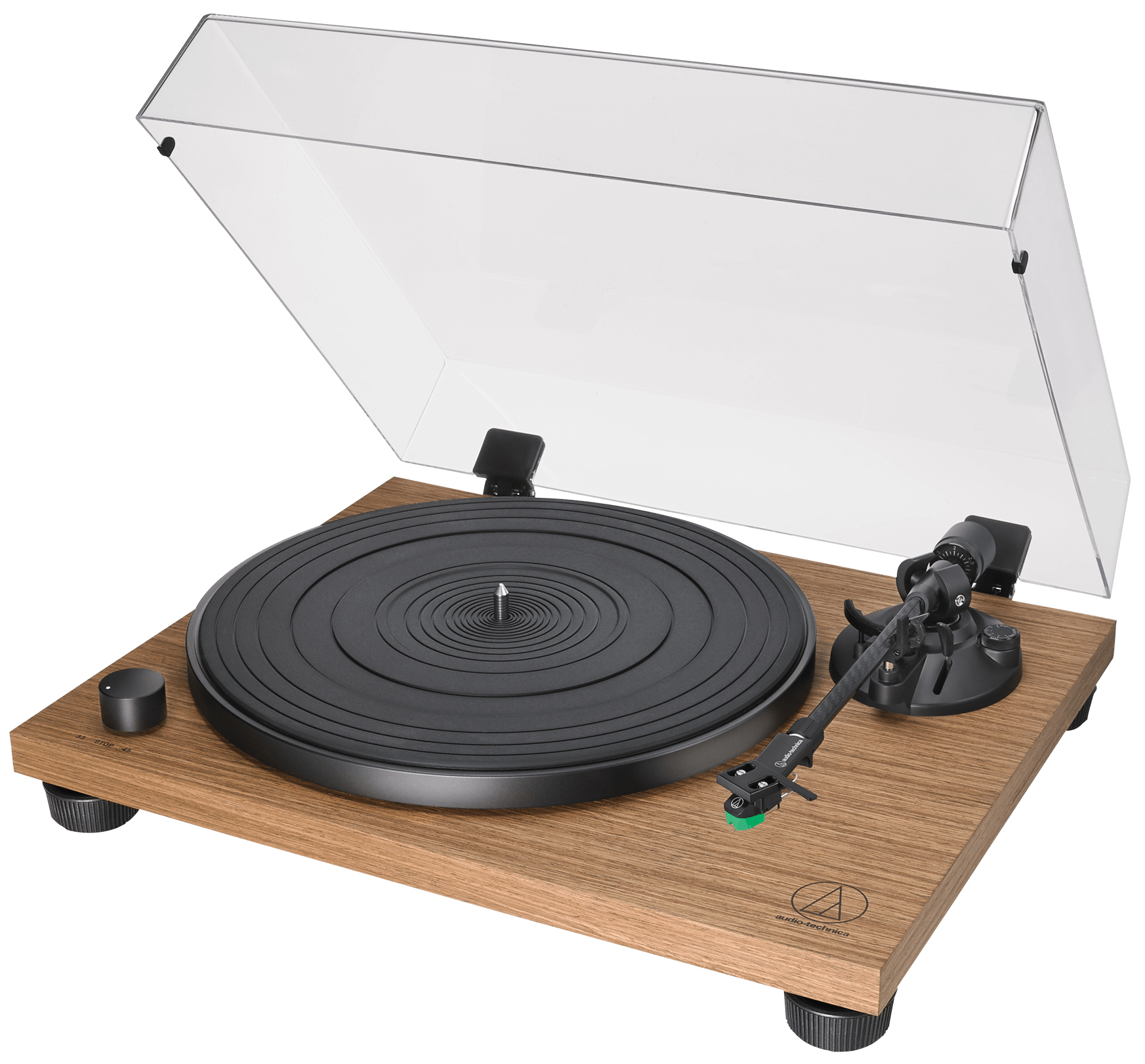

The Audio Technica AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Smart Styling: Audio Aesthetics
The LPW40WN was designed to give you optimal high-fidelity audio reproduction with smart styling.

Optimal High-fidelity Audio Reproduction: Stylish Wood Turntable
A stunning addition to any system, the AT-LPW40WN features an anti-resonance plinth with simulated walnut wood veneer to limit low-frequency acoustic feedback.

Cartridge Assembly Line circa 1962: Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century's worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminum platter with rubber mat
• AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Specifications:

• Type: Belt-drive manual turntable
• Motor: DC servo with Active Speed Stabilization
• Drive Method: Belt drive
• Speeds: 33-1/3 RPM, 45 RPM
• Turntable Platter: Die-cast aluminum
• Wow and Flutter: < 0.15% WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio: >60dB
• Output Level: Pre-amp "PHONO": 4.0 mV nominal at 1 kHz, 5 cm/sec. Pre-amp "LINE": 200 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
• Power Supply Requirements: 100-240 V, 50/60 Hz, 0.5 A Max.
• Dimensions: 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H
• Weight: 4.72 kg (10.40 lbs.) without dust cover
• Accessories Included: Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges
• Tonearm type: Static balanced straight carbon tonearm
• Effective arm length: 223.6 mm
• Overhang: 18.6 mm
• Tracking error angle:
• Applicable cartridge weight: 12-17 g
• Stylus pressure adjustment range: 0-3 g
• AC Adapter: 12 V, 0.5 A
• Replacement Stylus: AT-VMN95E

Built-in switchable phono pre-amplifier and dynamic anti-skate control.
